Pergola Kit 12'x12' - Hemlock
All New Boards & Beams Timber Frame Pergola Kits
"THE BEST PERGOLA KITS IN THE COUNTRY"
Choose from 25 Standard Sizes - 12" x 12" up to 20" x 20"
BEST OF ALL
1- All sizes in stock with minimal lead times (Approx 1-3 days)
2- Kits can be joined together for expandable sizes
3- Trusses are fully assembled for quick and easy installation
4- Every component is cut to size (Except roof decking)
5- Decorative steel plates on all connections to give it visual appeal and great strength
6- Made from urban large rough sawn hem fir timbers
7- Absolutely the most appealing and highest quality pergola in the country!
*Kit DOES NOT include local building permits, on site installation, stain, roofing or any site work*
( DIY Pergola Kits )
Coming Soon!!!
Boards and Beams will be constructing a
BRAND NEW and more Comprehensive
Website for our new line of
OUTDOOR LIVING SPACE
STRUCTURES
Our new pergola kits come in 5 standard size truss widths. Different size girder Lengths can be mixed and matched to build 25 different size pergolas. Now that's A LOT to choose from! Here is how it works...
This 3 Car Garage Structure was fabricated from our Pavilion/Pergola Kits. Doors were made with iron border by our Custom Ironworks Department.
All trusses in the kit will be made from 4" x 8" timbers (larger size timbers are also available for an additional charge) and made with 3/16 steel mending plates on all connections which means not only will your structure be beautiful, it will be very strong as well.
How to Order:
The best part of our pergola kits are there are minimal to no lead times! Most structures are in stock and can often be delivered same day! Although our Custom size structures will have a 4-6 week lead time.
Boards and Beams is not trying to build the lowest cost structure on the market, but a structure that has the highest value for your money. All of our kits are embellished with heavy decorative custom-made iron that will give your structure great strength and old world beauty that no other structure on the market offers. Is there a cheaper way of building pergolas??? YES!!! Look at our competitors...but Boards and Beams feels that value is the best choice our consumers can make.
Lengths of structures will be measured from outside to outside of supporting vertical posts with 4 posts on a 12'-14' foot long structure and 6 posts on a 16'-20' foot long structure. Length of structure will be determined by the supporting 8"x12" girders overall length. Keep in mind that a 12' foot long structure measured from outside to outside of supporting 8"x8" posts will have a total length of 14' foot. Girders will overhang 8"x8" posts by 12" on each side front to back. Girders will be 2' foot longer then the length of your structure.
See picture below

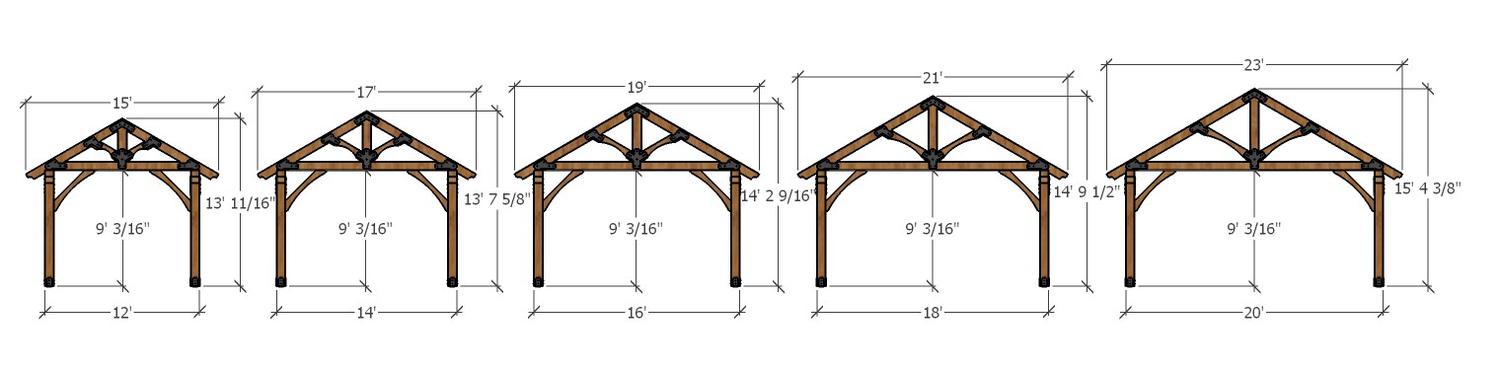

Width of structures will be determined by the width of the truss being used. For example, trusses will come in 5 different widths: 12', 14', 16', 18' & 20'. The width of a truss will be measured from outside to outside of supporting girders (not including the overhang of 18" on each side) which will give you plenty of overhang to shelter you from wind and rain. Example: A 12' wide truss with a 18" overhang on each side totals out to 3' of overhang plus the 12' wide truss will be a 15' overall length. A 20' truss will have a length of 23'.
See picture below
PAVILION KITS IN STOCK!! 25 STANDARD SIZE KITS TO CHOOSE FROM
Other factors to consider :
Our standard Pergola Kits are made from Rough Sawn Hem-Fir which can be stained to any color by the customer. If natural color is desired just a natural oil preserve will be needed. If a natural weathered look is desired then you can just leave them without any stains or oil preservatives. Staining or preserving of oils can be done/added in the future after some of the natural patina starts to add color to the timbers. The large overhang on our structures help the timbers from the harsh elements. As long as the roofing material is maintained, our structures should last a lifetime.
STANDARD OPTION: ROUGH SAWN HEM FIR
2"x6" Spruce Roof Decking - Tongue & Groove - Square Edge Top Side / V-Groove Bottom Side
• 5 Standard size trusses with a 7/12 roof pitch. Keep in mind that a 7 on 12 roof pitch can range from roughly a 28° to 32° degree angle. Our 7 on 12 pitch will be cut to a 30° degree angle.
• Additional Trusses are sold separately which can be ordered by SKU# located on picture above.
• Please note that the standard in stock trusses (pictured above) 12', 14', 16', 18', 20' foot can also be manufactured in odd or custom dimensions. Still a 7 on 12 Roof pitch with a lead time that can range from 1-2 Weeks. If a different roof pitch is desired/needed, lead time of 4 weeks will apply.
• Our standard trusses are made from 4"x8" rough Hemfir material. Larger size timbers and different wood species options are also available. Lead times for custom (Not Standard 4"x8" Hemfir) trusses will have a 4-6 week lead time.
